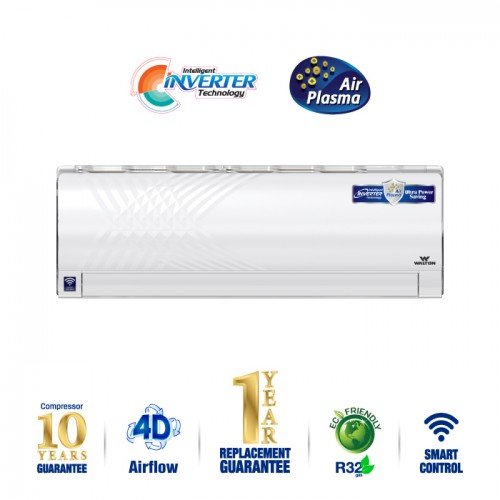

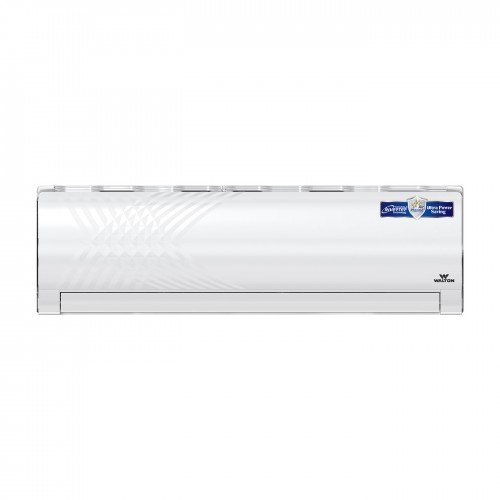

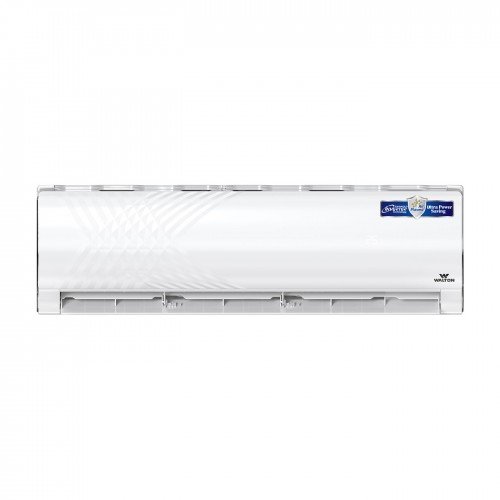

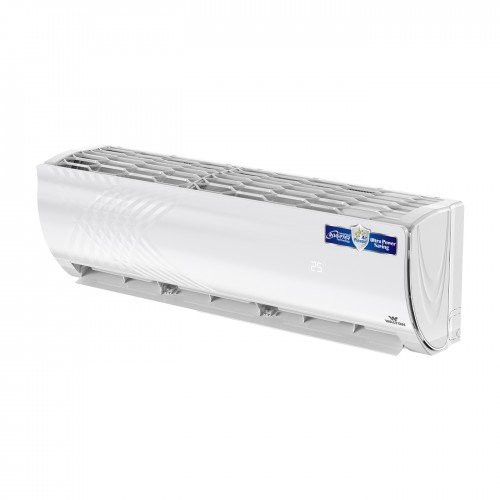

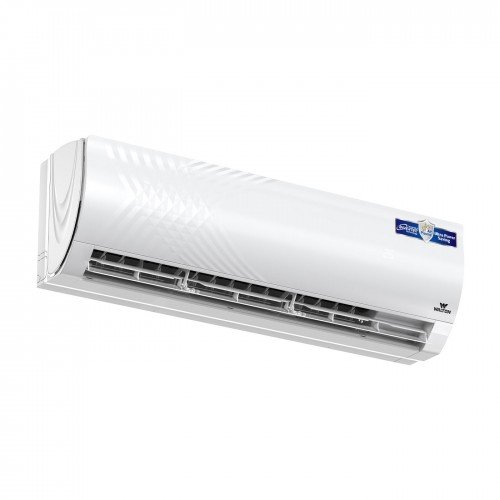

Walton Split Type AC – WSI-KRYSTALINE-24H [PLASMA]

WSI-KRYSTALINE-24H [PLASMA]

Air Conditioner Type: Twinfold Inverter
Function: Cooling
Cooling Capacity: 24000 BTU/Hr
7034 Watts
2 Ton
Compressor: Dual Rotary (Inverter)
Refrigerant: R-32

Basic Features

Function: Cooling
BTU/hr: 24000
Rated Voltage : 230V ~ 50Hz
Rated Input Power (W): 2036
Rated Current (A): 8.92
Cooling Capacity (W): 7034
EER: 3.45

Cooling Features

Compressor Type: Dual Rotary (Inverter)
Refrigerant Type: R-32
Refrigerant Amount (Kg): 0.98
Operating Range (Ambient Temperature): 20˚C to 52˚C
Evaporator Fin Type: Louvered Fin
Condenser Type : Copper Tube Condenser
Condenser Fin Type: Louvered Fin
Maximum Pipe Length : 15m

Operations

Turbo Mode (Maximum Cooling) : Yes
ECO Mode (Power Saving): Yes
Dry Mode: Yes
Fan Mood: Yes
Auto Operation: Yes
Auto Restart: Yes
Comfort Cooling: Yes
Speed Setting : Yes (Auto, High, Medium, Low)
Timer: Yes
Sleep: Yes

Remote & Air Deflection

Display Type: LCD
Operation/Control: Via IR (Infrared Ray)
Child Lock: Yes
Temperature Unit Change: Yes (16°C to 31°C)
Auto UP-Down Swing: Yes
Auto Left-Right Swing: Yes

Dimensions & Weights

Indoor Dimensions (mm) [L×W×H] Unit: 1094 x 329 x 242
Packing: 1180 x 410 x 315

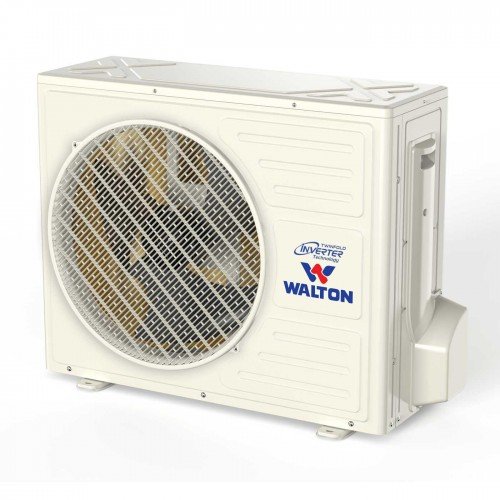

Outdoor Dimensions (mm) [L×W×H] Unit: 942 x 371 x 701
Packing: 1015 x 440 x 775
Net Weight (Indoor) (Kg) 16 ± 0.5
Gross Weight (Indoor) (Kg) 19 ± 0.5
Net Weight (Outdoor) (Kg) 41 ± 1
Gross Weight (Outdoor) (Kg) 46 ± 1

Guarantee/Warranty Information

Product Replacement Guarantee: 1 Year
(Note: if there are manufacturing faults in the heat exchanger & compressor)

For Residential Usage: Compressor Guarantee: 10 Years
Spare Parts Support: 3 Years
After Sales Service: 1 Year (Free)

For Commercial Usage: Compressor Guarantee: 5 Years
Spare Parts Support: 2 Years
After Sales Service: 1 Year (Free)

Terms & Conditions

1. This warranty does not cover the following cases –
i) The warranty will be invalid if the product is misused, neglected, or rented on a commercial basis. The warranty also will be invalid if repaired, replaced modified by unauthorized service personnel.
ii) If the product serial number/barcode is removed, altered, or duplicated, the warranty will be invalid.
2. This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.
3. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.
