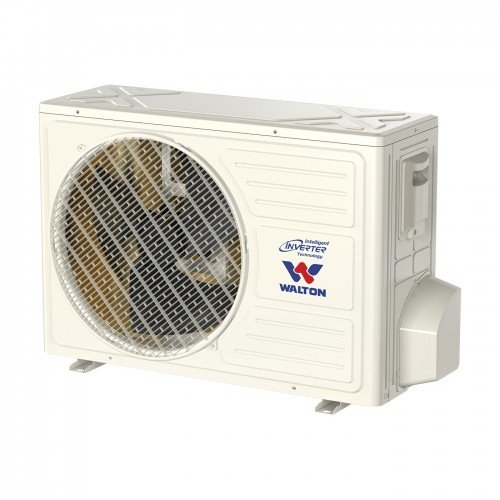

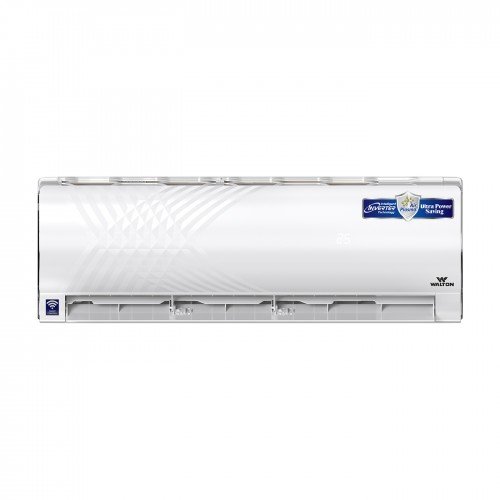

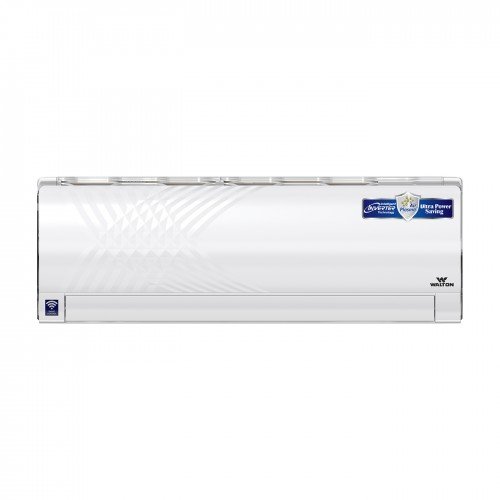

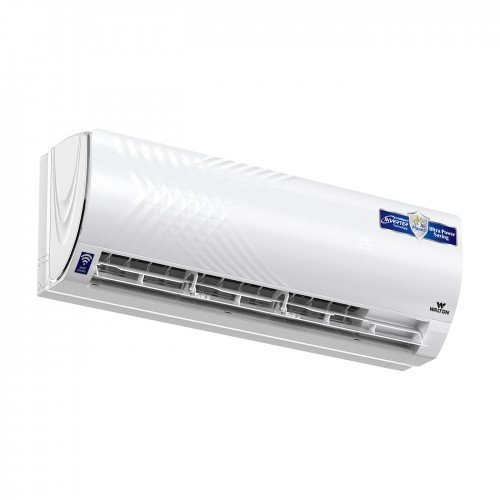

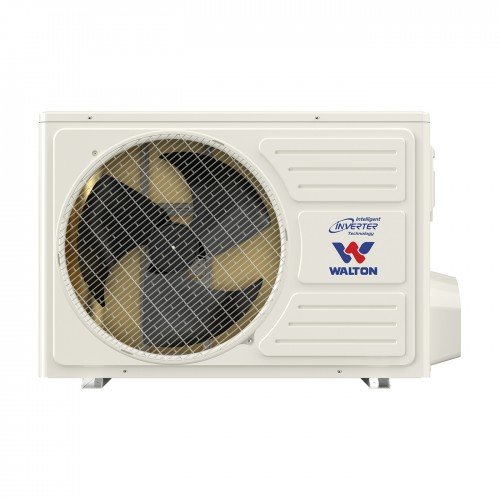

Walton Split Type AC – WSI-KRYSTALINE-18F [SMART PLASMA]

WSI-KRYSTALINE-18F [SMART PLASMA]

Air Conditioner Type: Intelligent Inverter

Function: Cooling

Cooling Capacity: 18000 BTU/Hr

5275 Watts

1.5 Ton

Compressor: Rotary (Inverter)

Refrigerant: R-32

Basic Features

Function: Cooling

BTU/hr: 18000

Rated Voltage : 230V ~ 50Hz

Rated Input Power (W): 1565

Rated Current (A): 6.92

Cooling Capacity (W): 5275

EER: 3.37

Smart Control: Through App

Cooling Features

Compressor Type: Rotary (Inverter)

Refrigerant Type: R-32

Refrigerant Amount (Kg): 0.65

Operating Range (Ambient Temperature): 20˚C to 52˚C

Evaporator Fin Type: Louvered Fin

Condenser Type: Copper Tube Condenser

Condenser Fin Type: Louvered Fin

Maximum Pipe Length : 10m

Operations

Turbo Mode (Maximum Cooling): Yes

ECO Mode (Power Saving): Yes

Dry Mode: Yes

Fan Mood: Yes

Auto Operation : Yes

Auto Restart: Yes

Comfort Cooling: Yes

Speed Setting : Yes (Auto, High, Medium, Low)

Timer: Yes

Sleep: Yes

Remote & Air Deflection

Display Type: LCD

Operation/Control: Via IR (Infrared Ray)

Child Lock: Yes

Temperature Unit Change: Yes (16°C to 31°C)

Auto UP-Down Swing: Yes

Auto Left-Right Swing: Yes

Dimensions & Weights

Indoor Dimensions (mm) [L×W×H] Unit: 947 x 321 x 235

Packing: 1025 x 400 x 300

Outdoor Dimensions (mm) [L×W×H] Unit: 844 x 310 x 546

Packing: 900 x 372 x 610

Net Weight (Indoor) (Kg) 12.5 ± 0.5

Gross Weight (Indoor) (Kg) 15 ± 0.5

Net Weight (Outdoor) (Kg) 27 ± 1

Gross Weight (Outdoor) (Kg) 31.5 ± 1

Guarantee/Warranty Information

Product Replacement Guarantee: 1 Year
(Note: if there are manufacturing faults in the heat exchanger & compressor)

For Residential Usage: Compressor Guarantee: 10 Years
Spare Parts Support: 3 Years
After Sales Service: 1 Year (Free)

For Commercial Usage: Compressor Guarantee: 5 Years
Spare Parts Support: 2 Years
After Sales Service: 1 Year (Free)

Terms & Conditions
1. This warranty does not cover the following cases –
i) The warranty will be invalid if the product is misused, neglected, or rented on a commercial basis. The warranty also will be invalid if repaired, replaced modified by unauthorized service personnel.
ii) If the product serial number/barcode is removed, altered, or duplicated, the warranty will be invalid.
2. This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.
3. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.
