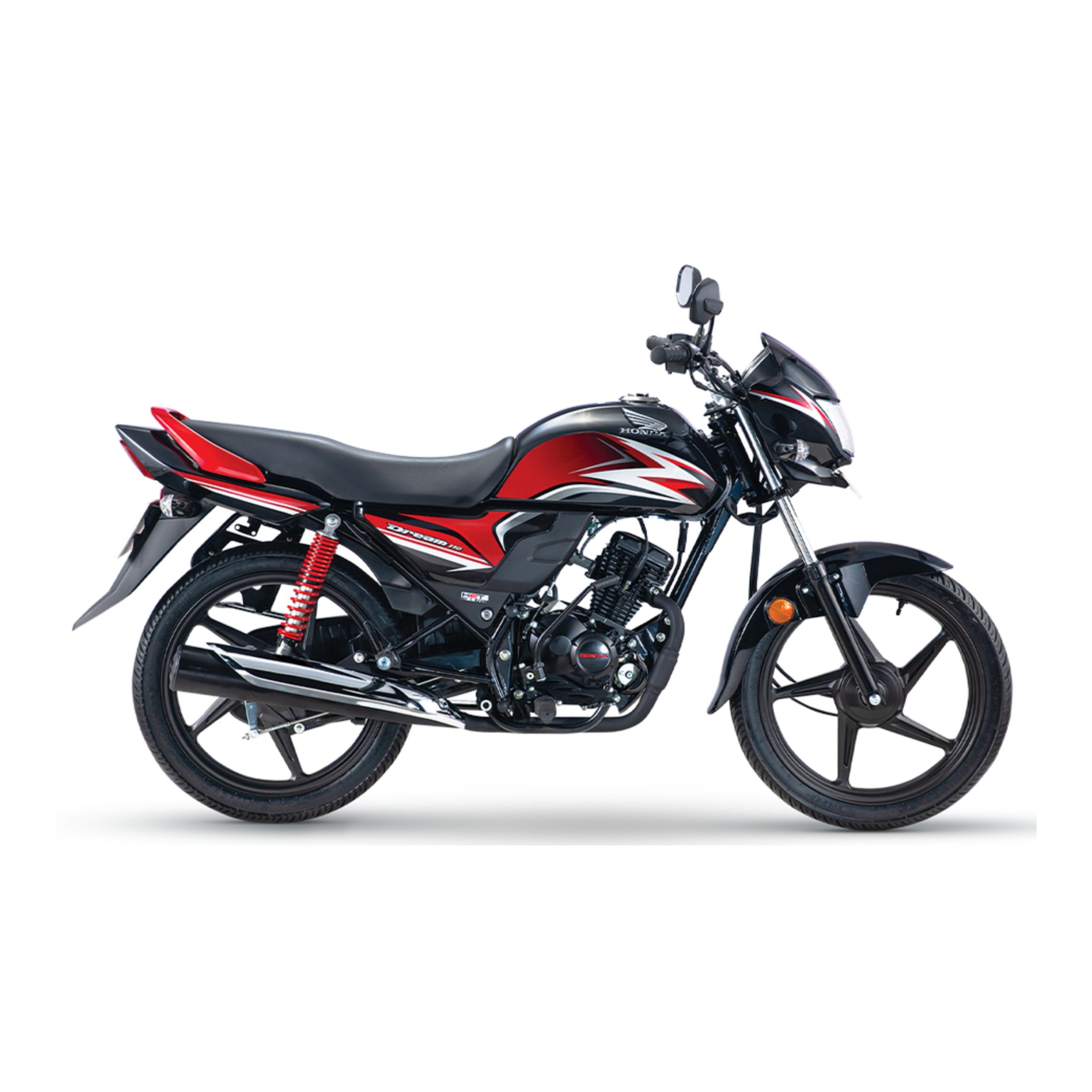

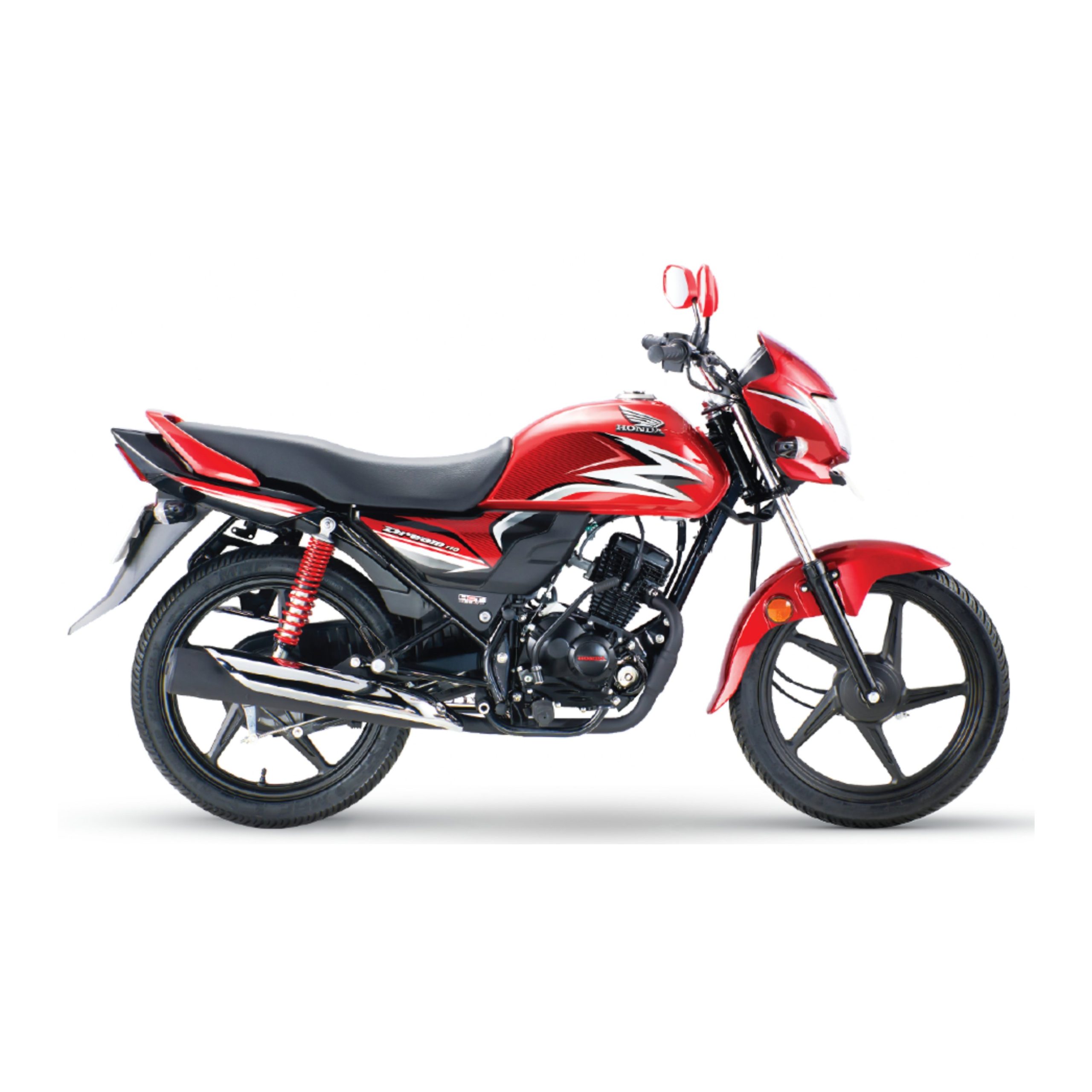

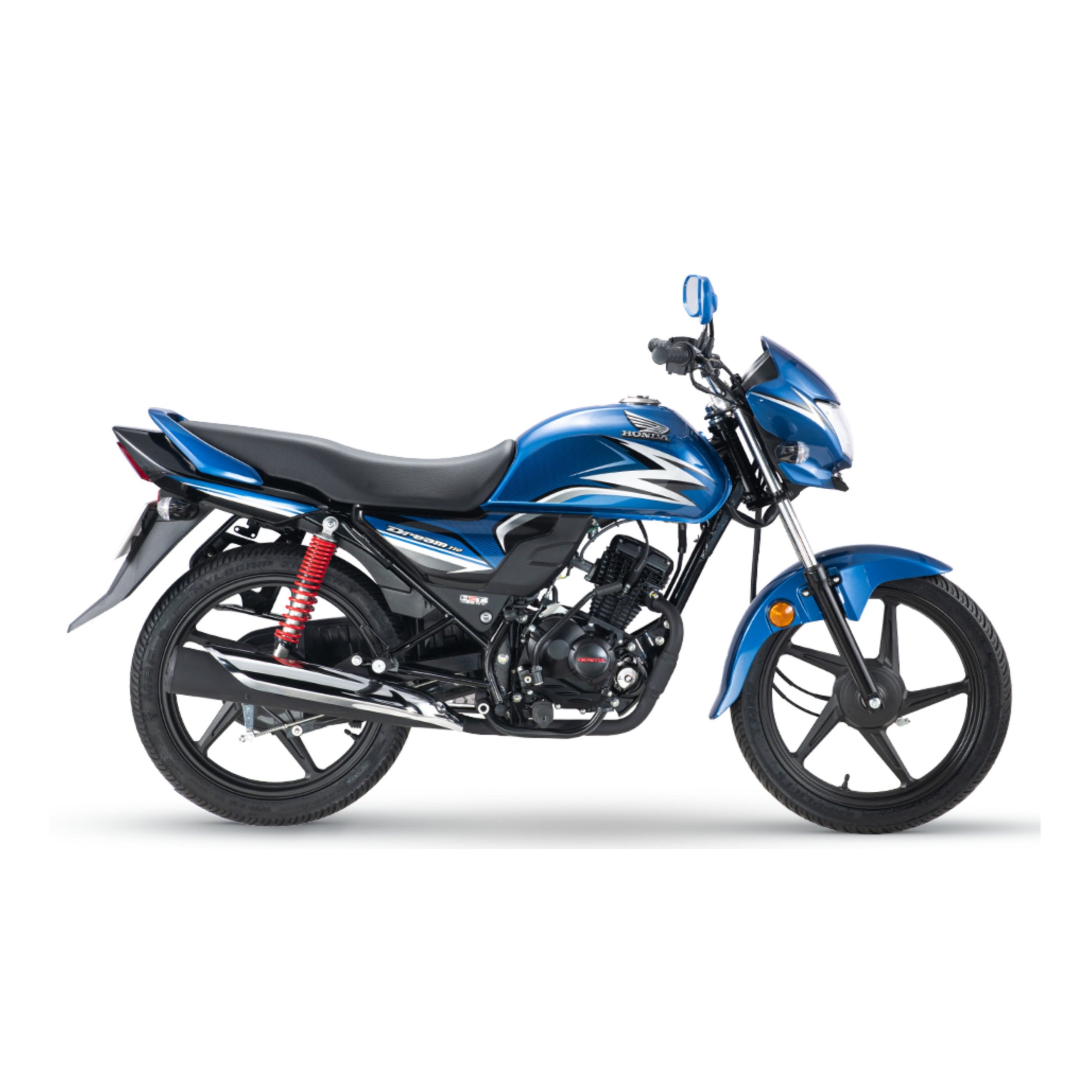

Honda Dream 110

Body Dimensions

• Length: 2020 mm
• Width: 737 mm
• Height: 1061 mm
• Wheel base: 1285 mm
• Ground clearance: 180 mm
• Kerb weight: 107 Kg
• Fuel tank: capacity 8L

Engine

• Type: Air cooled, 4-Stroke, BS-IV
• Displacement: 110ccMax net
• power: 8.36 PS (8.25 BHP) @ 7500 RPM
• Max: net torque 9.09 Nm @ 5500 RPM
• Bore: 50:0 mm
• Stroke: 55.6 mm
• Compression Ratio: 9.9:1
• Air filter type: Viscous paper filter
• Starting method : Kick/Self

Transmission

• No of gears: 4
• Gear pattern: N-1-2-3-4
• Max speed: 86 kmph

Tyres & Brakes

• Tyre Size (Front): 80/100-18
• Tyre Size (Rear): 80/100-18
• Tyre Type (Front): Tubeless
• Tyre Type (Rear): Tubeless
• Brake Type & Size (Front): Drum 130 mm
• Brake Type & Size (Rear): Drum 130 mm

Frame & Suspension

• Frame type: Diamond
• Front : Telescopic fork
• Rear: 5 step adjustable twin spring loaded

Electricals

• Battery : 12V 3Ah (MF)
• Head: lamp 12V 35-35W
